LKG1AF-12V-16-1

Panasonic

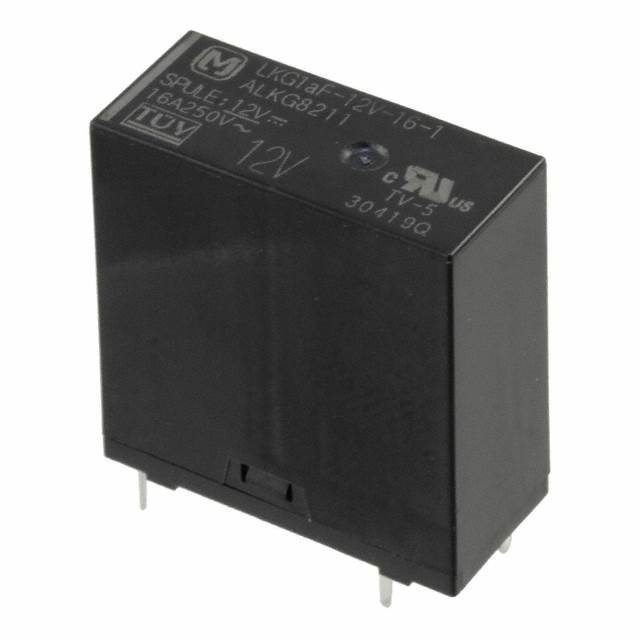

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LKG1AF-12V-16-1
Manufacturer/Brand:	Panasonic
Product description	RELAY GEN PURPOSE SPST 16A 12V
Datasheets:	LKG1AF-12V-16-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51293 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 51293 pcs

Reference Price (In US Dollars)

100 pcs: $0.644

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.644

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LKG1AF-12V-16-1

Part Number	LKG1AF-12V-16-1	Manufacturer	Panasonic
Description	RELAY GEN PURPOSE SPST 16A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51293 pcs	Data sheet	LKG1AF-12V-16-1.pdf
Turn On Voltage (Max)	9 VDC	Turn Off Voltage (Min)	1.2 VDC
Termination Style	PC Pin	Switching Voltage	277VAC - Max
Series	LK-G	Release Time	20ms
Relay Type	General Purpose	Packaging	Bulk
Other Names	LKG1AF12V161	Operating Temperature	-40°C ~ 70°C
Operate Time	15ms	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Sealed - Flux Protection
Detailed Description	General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole	Contact Rating (Current)	16A
Contact Material	Silver Tin Oxide (AgSnO)	Contact Form	SPST-NO (1 Form A)
Coil Voltage	12VDC	Coil Type	Non Latching
Coil Resistance	272 Ohms	Coil Power	530 mW
Coil Current	44.2mA
