NMB Technologies Corp.

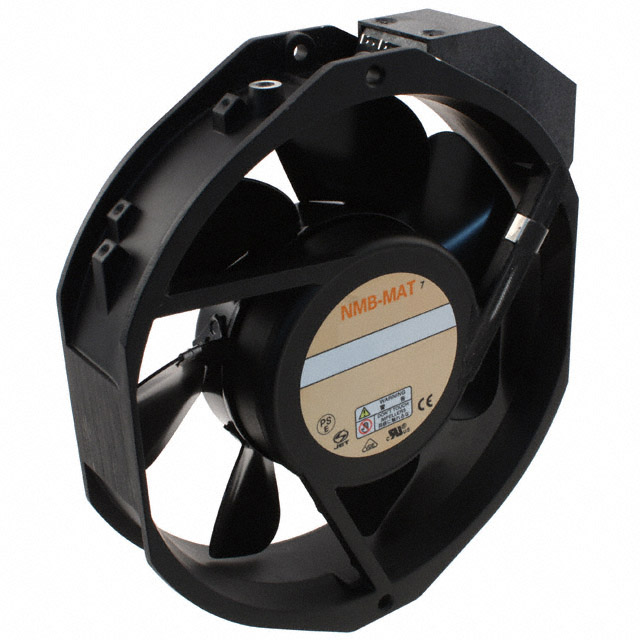

| Part Number | 5915PC-23T-B30-SM0 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | FAN AXIAL 172X38MM 230VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1440 pcs | Data sheet | 1.5915PC-23T-B30-SM0.pdf2.5915PC-23T-B30-SM0.pdf3.5915PC-23T-B30-SM0.pdf |
| Width | 38.00mm | Weight | 2.1 lbs (952.5g) |
| Voltage Range | - | Voltage - Rated | 230VAC |
| Termination | 2 Terminals | Static Pressure | 0.655 in H2O (163.2 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | 15038PB |
| RPM | 3150 RPM | Power (Watts) | 40.00W |
| Other Names | 15038PB-B3L-GP-S0 5915PC23TB30SM0 P13609 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 53.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polycarbonate (PC), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 16 Weeks | Lifetime @ Temp. | 50000 Hrs @ 25°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.200A | Bearing Type | Ball |
| Approvals | CE, CSA, UL, VDE | Air Flow | 187.1 CFM (5.24m³/min) |
