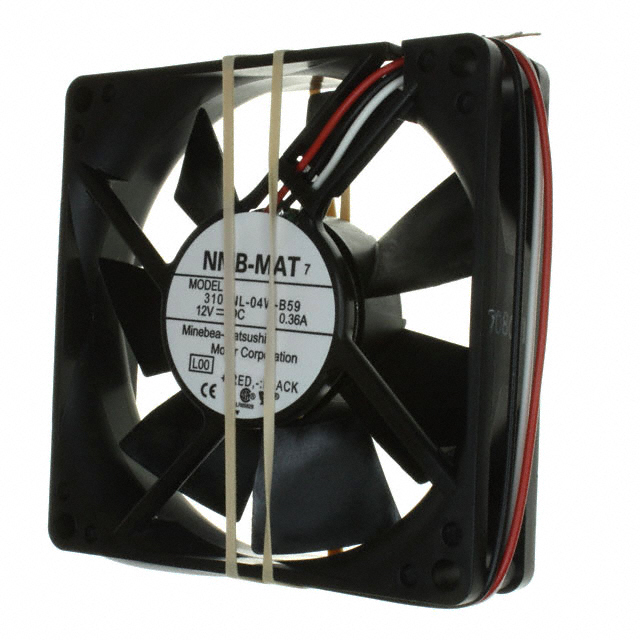

Part Number | 3108NL-04W-B59-L00 | Manufacturer | NMB Technologies Corp. |
---|---|---|---|
Description | FAN AXIAL 80X20MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 8917 pcs | Data sheet | 1.3108NL-04W-B59-L00.pdf2.3108NL-04W-B59-L00.pdf3.3108NL-04W-B59-L00.pdf |
Width | 20.00mm | Weight | 0.187 lb (84.82g) |
Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
Termination | 3 Wire Leads | Static Pressure | 0.201 in H2O (50.1 Pa) |
Size / Dimension | Square - 80mm L x 80mm H | Series | 3108NL |
RPM | 3750 RPM | Power (Watts) | 3.36W |
Other Names | 08020MA-12N-AL-00 3108NL04WB59L00 P13408 |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
Noise | 42.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material - Frame | Plastic | Material - Blade | Plastic |
Manufacturer Standard Lead Time | 14 Weeks | Lifetime @ Temp. | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
Features | Locked Rotor Sensor | Fan Type | Tubeaxial |
Current Rating | 0.280A | Bearing Type | Ball |
Approvals | CE, CSA, UL, VDE | Air Flow | 44.0 CFM (1.23m³/min) |
