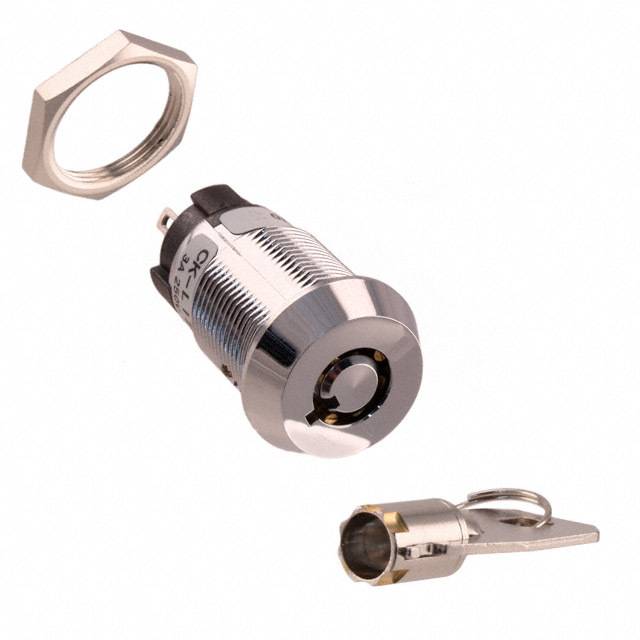

NKK Switches
| Part Number | CKL12BTW01-008 | Manufacturer | NKK Switches |
|---|---|---|---|
| Description | SWITCH KEYLOCK 2POS SPDT 3A 250V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7233 pcs | Data sheet | CKL12BTW01-008.pdf |
| Voltage Rating - AC | 250V | Termination Style | Solder Lug |
| Switch Function | On-On | Series | CK |
| Panel Cutout Dimensions | Circular - 19.00mm Dia | Other Names | 360-2557 CKL12BTW01-008-ND CKL12BTW01008 |
| Operating Temperature | -25°C ~ 70°C | Number of Positions | 2 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 30,000 Cycles | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Key Removable Positions | 1 only |
| Features | Epoxy Sealed Terminals | Electrical Life | 10,000 Cycles |
| Detailed Description | Keylock Switch 2 Position SPDT 3A (AC) 250VAC Panel Mount | Depth Behind Flange | 34.60mm |
| Current Rating | 3A (AC) | Contact Timing | Non-Shorting (BBM) |
| Contact Material | Silver (Ag) | Contact Finish | Silver |
| Circuit | SPDT | Angle of Throw | 90° |
| Actuator Type | Tubular Key |
