Mill-Max

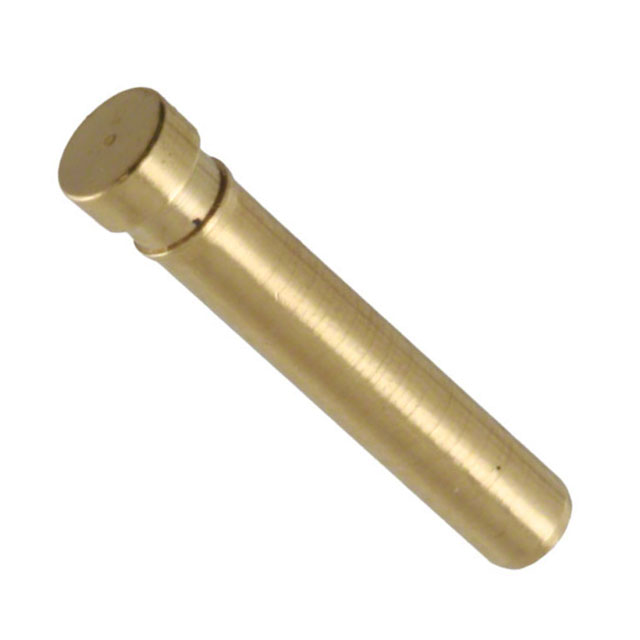

| Part Number | 3000-0-00-15-00-00-03-0 | Manufacturer | Mill-Max |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.059DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 419681 pcs | Data sheet | 3000-0-00-15-00-00-03-0.pdf |
| Termination | Press-Fit | Terminal Type | PC Pin |
| Terminal Style | Wire | Series | 3000 |
| Pin Size - Below Flange | - | Pin Size - Above Flange | 0.059" (1.50mm) Dia |
| Packaging | Bulk | Other Names | 3000000150000030 3E+15 ED90500 |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.061" (1.55mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.352" (8.94mm) |
| Length - Below Flange | - | Length - Above Flange | 0.321" (8.15mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.072" (1.83mm) |
| Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.059" (1.50mm) Dia | Contact Material | Brass Alloy |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Board Thickness | - |
