Hirose

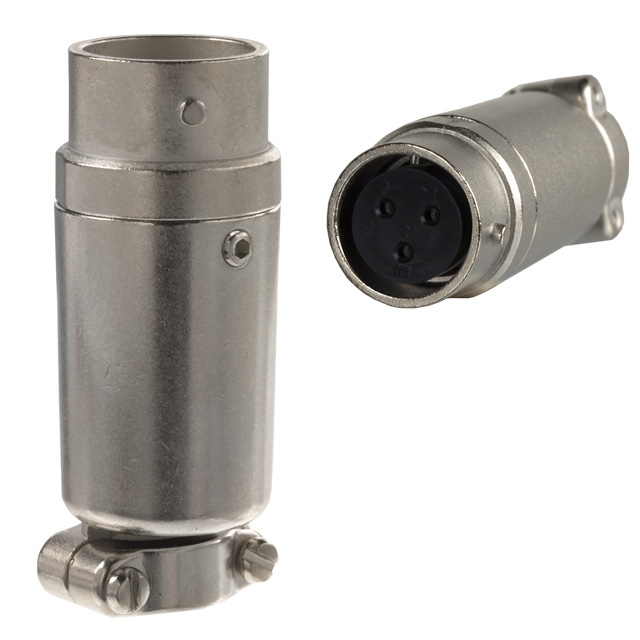

| Part Number | RM12BJB-3S(07) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN JACK FMALE 3POS SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6405 pcs | Data sheet | RM12BJB-3S(07).pdf |
| Voltage Rating | 500VAC, 700VDC | Termination | Solder Cup |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | 12 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | RM |
| Packaging | Bulk | Other Names | *RM12BJB-3S(07) HR322 RM12BJB-3S RM12BJB-3S07 RM12BJB3S07 |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Diallyl Phthalate (DAP) |
| Ingress Protection | - | Features | Backshell, Cable Clamp |
| Fastening Type | Bayonet Lock | Detailed Description | 3 Position Circular Connector Jack, Female Sockets Solder Cup Silver |
| Current Rating | 5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 196.9µin (5.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Jack, Female Sockets | Color | Silver |
| Cable Opening | 0.197" ~ 0.315" (5.00mm ~ 8.00mm) | Backshell Material, Plating | Zinc Alloy, Nickel |
| Applications | - |
