Cherry Switches (ZF Electronics)

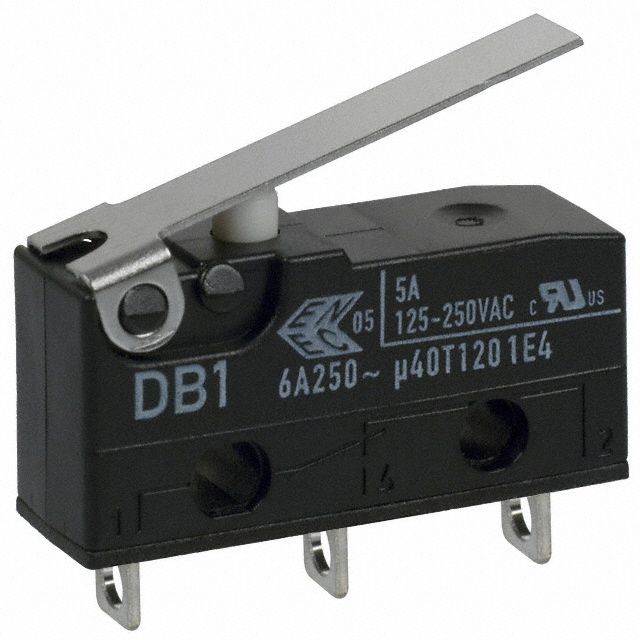

| Part Number | DB1C-A1LB | Manufacturer | Cherry Switches (ZF Electronics) |
|---|---|---|---|
| Description | SWITCH SNAP ACTION SPDT 5A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35548 pcs | Data sheet | 1.DB1C-A1LB.pdf2.DB1C-A1LB.pdf |
| Voltage Rating - DC | 48V | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | On-Mom |
| Series | DB | Release Force | - |
| Pretravel | 0.157" (4.0mm) | Packaging | Bulk |
| Overtravel | 0.079" (2.0mm) | Other Names | CH884 DB1C-A1LB-ND DB1CA1LB DB1CA1LB-ND Q1139446A |
| Operating Temperature | -40°C ~ 120°C | Operating Position | 0.420" (10.7mm) |
| Operating Force | 60gf | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 15,000,000 Cycles |
| Manufacturer Standard Lead Time | 29 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP50 - Dust Protected | Features | - |
| Electrical Life | 6,000 Cycles | Differential Travel | 0.020" (0.5mm) |
| Current Rating | 5A (AC), 1A (DC) | Circuit | SPDT |
| Actuator Type | Lever, Straight |
