PS2915-1-AX

CEL (California Eastern Laboratories)

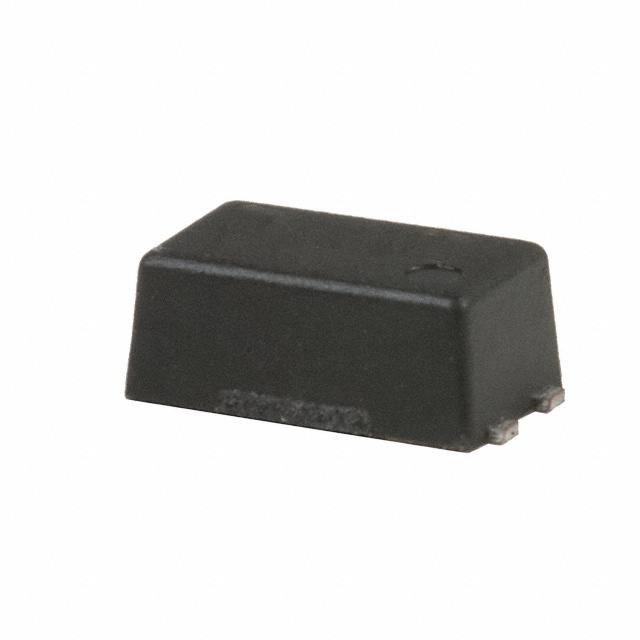

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PS2915-1-AX
Manufacturer/Brand:	CEL (California Eastern Laboratories)
Product description	OPTOISOLATOR 2.5KV TRANS 4SMD
Datasheets:	1.PS2915-1-AX.pdf 2.PS2915-1-AX.pdf 3.PS2915-1-AX.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4029 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4029 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PS2915-1-AX

Part Number	PS2915-1-AX	Manufacturer	CEL (California Eastern Laboratories)
Description	OPTOISOLATOR 2.5KV TRANS 4SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4029 pcs	Data sheet	1.PS2915-1-AX.pdf 2.PS2915-1-AX.pdf 3.PS2915-1-AX.pdf
Voltage - Output (Max)	40V	Voltage - Isolation	2500Vrms
Voltage - Forward (Vf) (Typ)	1.1V	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	40µs, 120µs	Supplier Device Package	4-Mini-Flat
Series	-	Rise / Fall Time (Typ)	5µs, 10µs
Packaging	Bulk	Package / Case	4-SMD, Flat Leads
Output Type	Transistor	Operating Temperature	-55°C ~ 100°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	AC, DC	Detailed Description	Optoisolator Transistor Output 2500Vrms 1 Channel 4-Mini-Flat
Current Transfer Ratio (Min)	100% @ 1mA	Current Transfer Ratio (Max)	400% @ 1mA
Current - Output / Channel	40mA	Current - DC Forward (If) (Max)	50mA
