PN12SHSA03QE

C&K

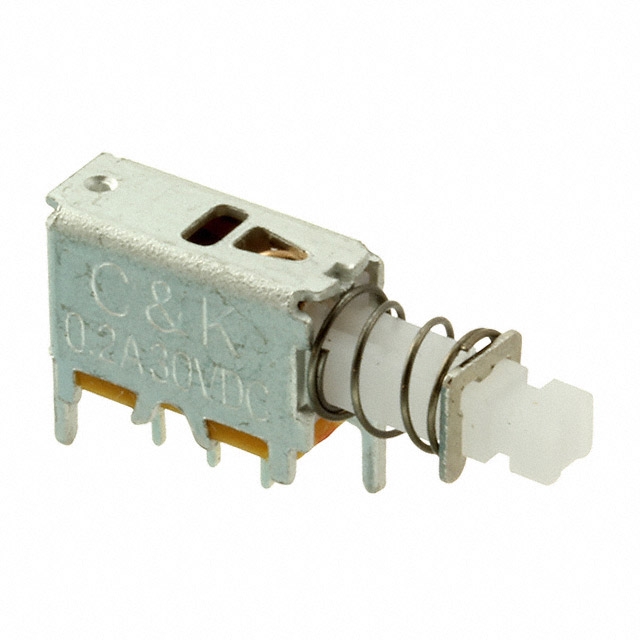

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PN12SHSA03QE
Manufacturer/Brand:	C&K
Product description	SWITCH PUSH SPDT 0.2A 30V
Datasheets:	PN12SHSA03QE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63802 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 63802 pcs

Reference Price (In US Dollars)

1 pcs: $0.48

10 pcs: $0.447

25 pcs: $0.426

50 pcs: $0.405

100 pcs: $0.394

250 pcs: $0.383

500 pcs: $0.362

1000 pcs: $0.341

5000 pcs: $0.288

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.48

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PN12SHSA03QE

Part Number	PN12SHSA03QE	Manufacturer	C&K
Description	SWITCH PUSH SPDT 0.2A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63802 pcs	Data sheet	PN12SHSA03QE.pdf
Voltage Rating - DC	30V	Type	Standard
Termination Style	PC Pin	Switch Function	On-On
Series	PN	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	*PN12SHSA03QE CKN10946 PN12SHSA03QE-ND
Operating Temperature	-10°C ~ 60°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Through Hole, Right Angle
Current Rating	200mA (DC)	Color - Actuator/Cap	White
Circuit	SPDT	Actuator Type	Plunger for Cap
