ACPL-K64L-000E

Avago Technologies (Broadcom Limited)

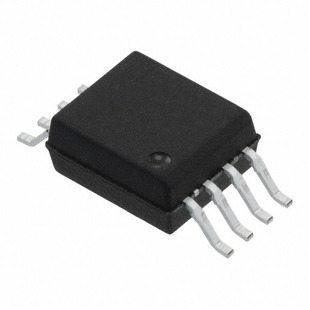

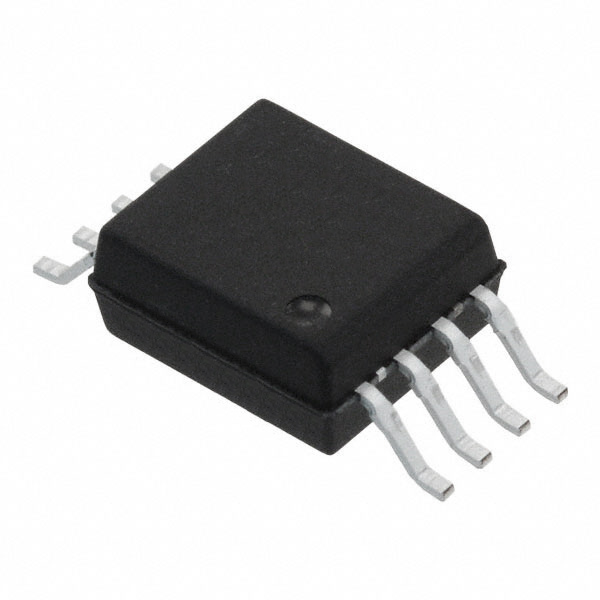

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ACPL-K64L-000E
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 5KV 2CH PUSH PULL 8SO
Datasheets:	ACPL-K64L-000E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15518 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15518 pcs

Reference Price (In US Dollars)

1 pcs: $1.969

10 pcs: $1.642

25 pcs: $1.379

160 pcs: $1.182

320 pcs: $1.051

560 pcs: $0.952

1040 pcs: $0.873

2560 pcs: $0.837

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.969

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ACPL-K64L-000E

Part Number	ACPL-K64L-000E	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 5KV 2CH PUSH PULL 8SO	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15518 pcs	Data sheet	ACPL-K64L-000E.pdf
Voltage - Supply	2.7 V ~ 5.5 V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.3V	Supplier Device Package	8-SO Stretched
Series	-	Rise / Fall Time (Typ)	12ns, 12ns
Propagation Delay tpLH / tpHL (Max)	80ns, 80ns	Packaging	Tube
Package / Case	8-SOIC (0.268", 6.81mm Width)	Output Type	Push-Pull, Totem Pole
Other Names	516-2626-5 ACPL-K64L-000E-ND ACPLK64L000E	Operating Temperature	-40°C ~ 105°C
Number of Channels	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	22 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inputs - Side 1/Side 2	2/0
Input Type	DC	Detailed Description	Logic Output Optoisolator 10MBd Push-Pull, Totem Pole 5000Vrms 2 Channel 20kV/µs CMTI 8-SO Stretched
Data Rate	10MBd	Current - Output / Channel	10mA
Current - DC Forward (If) (Max)	8mA	Common Mode Transient Immunity (Min)	20kV/µs
