1586768-4

Agastat Relays / TE Connectivity

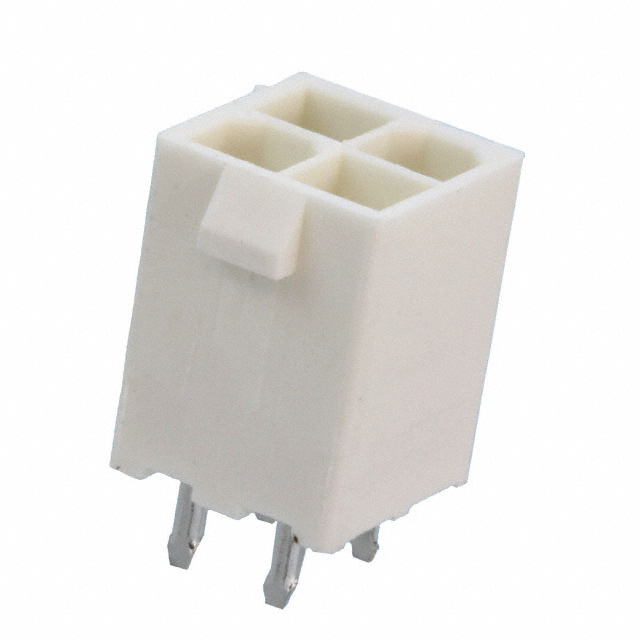

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1586768-4
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 4POS VERT DL TIN
Datasheets:	1586768-4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	120531 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 120531 pcs

Reference Price (In US Dollars)

1 pcs: $0.289

10 pcs: $0.253

100 pcs: $0.218

600 pcs: $0.179

1200 pcs: $0.159

5400 pcs: $0.139

10200 pcs: $0.132

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1586768-4

Part Number	1586768-4	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 4POS VERT DL TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	120531 pcs	Data sheet	1586768-4.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	VAL-U-LOK	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	1586768-4-ND A114909
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	41 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.504" (12.80mm)
Insulation Color	White	Ingress Protection	-
Features	Glow Wire Compliant	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 4 position 0.165" (4.20mm)	Current Rating	9A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
