0936011553

Affinity Medical Technologies - a Molex company

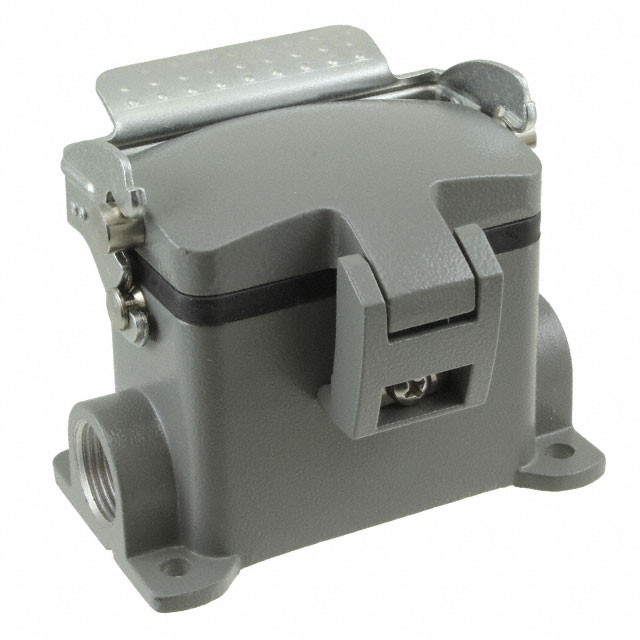

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0936011553
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	SURFACE MOUNTING HOUSING 1 LEVER
Datasheets:	1.0936011553.pdf 2.0936011553.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3004 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3004 pcs

Reference Price (In US Dollars)

1 pcs: $10.494

10 pcs: $9.471

25 pcs: $9.074

50 pcs: $8.507

100 pcs: $8.224

250 pcs: $7.77

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$10.494

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0936011553

Part Number	0936011553	Manufacturer	Affinity Medical Technologies - a Molex company
Description	SURFACE MOUNTING HOUSING 1 LEVER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3004 pcs	Data sheet	1.0936011553.pdf 2.0936011553.pdf
Thread Size	M20	Style	Side Entry
Size / Dimension	3.819" L x 2.244" W x 2.244" H (97.00mm x 57.00mm x 57.00mm)	Size	10B
Series	GWconnect	Packaging	Bulk
Other Names	093601-1553 7810.6363.0 93601-1553 936011553 WM12132	Operating Temperature	-40°C ~ 125°C
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lock Location	Locking Clip (1) on Base Bottom	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP66 - Dust Tight, Water Resistant	Housing Material	Aluminum Alloy, Die Cast
Housing Finish	Powder Coated	Housing Color	-
Features	Cover	Connector Type	Base - Box Mount
