0751020116

Affinity Medical Technologies - a Molex company

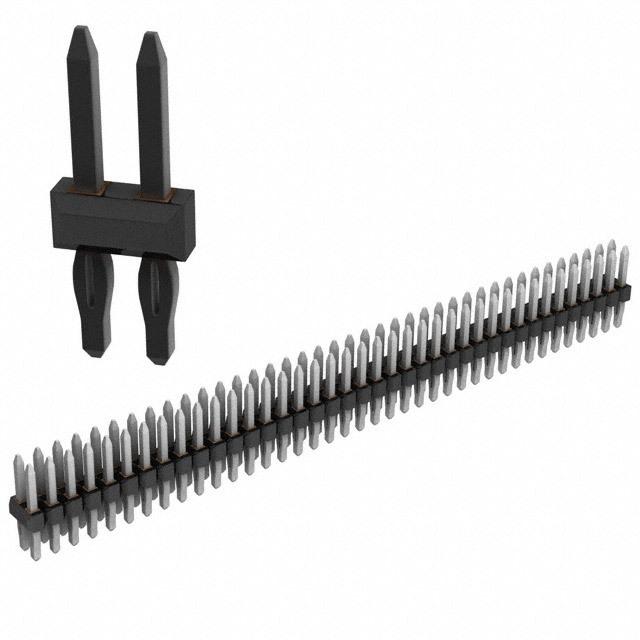

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0751020116
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HDR DUAL 78POS .100 SRT TIN
Datasheets:	0751020116.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1709 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1709 pcs

Reference Price (In US Dollars)

1 pcs: $17.827

10 pcs: $16.777

25 pcs: $16.253

50 pcs: $15.204

100 pcs: $14.365

250 pcs: $13.946

500 pcs: $13.631

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$17.827

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0751020116

Part Number	0751020116	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HDR DUAL 78POS .100 SRT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1709 pcs	Data sheet	0751020116.pdf
Voltage Rating	-	Termination	Press-Fit, Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 75102	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.517" (13.13mm)	Other Names	075102-0116 075102-0116-E 0751020116-E 75102-0116 75102-0116-E 751020116 751020116-E WM50023-78 WM7478 WM7478-ND
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	78
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height	0.090" (2.29mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 78 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.187" (4.75mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
