0015913134

Affinity Medical Technologies - a Molex company

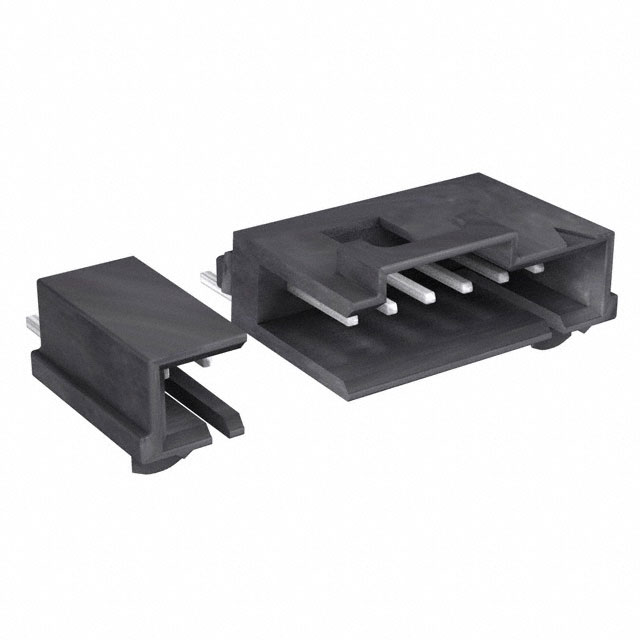

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015913134
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 13POS R/A TIN SMD
Datasheets:	1.0015913134.pdf 2.0015913134.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18367 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18367 pcs

Reference Price (In US Dollars)

420 pcs: $1.623

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.623

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015913134

Part Number	0015913134	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 13POS R/A TIN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18367 pcs	Data sheet	1.0015913134.pdf 2.0015913134.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SL 70634	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	0015-91-3134 001591-3134 15-91-3134 15913134 70634-0012
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	13
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.215" (5.45mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Surface Mount, Right Angle 13 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	74.8µin (1.90µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
