1812R-563J

API Delevan

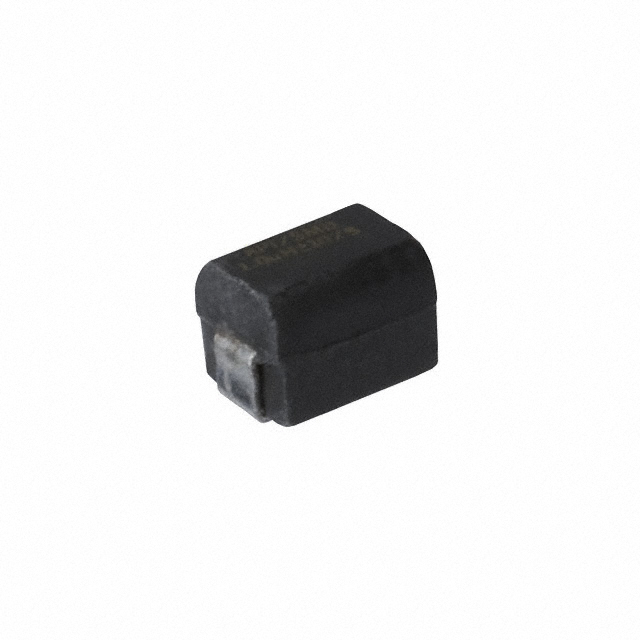

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1812R-563J
Manufacturer/Brand:	API Delevan
Product description	FIXED IND 56UH 191MA 5.5 OHM SMD
Datasheets:	1812R-563J.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63825 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 63825 pcs

Reference Price (In US Dollars)

1 pcs: $0.589

10 pcs: $0.548

100 pcs: $0.396

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.589

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1812R-563J

Part Number	1812R-563J	Manufacturer	API Delevan
Description	FIXED IND 56UH 191MA 5.5 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63825 pcs	Data sheet	1812R-563J.pdf
Type	-	Tolerance	±5%
Supplier Device Package	1812	Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Shielding	Unshielded	Series	1812R
Ratings	-	Q @ Freq	50 @ 2.5MHz
Packaging	Cut Tape (CT)	Package / Case	1812 (4532 Metric)
Other Names	DN42139JCT	Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Ferrite	Manufacturer Standard Lead Time	31 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	2.5MHz
Inductance	56µH	Height - Seated (Max)	0.134" (3.40mm)
Frequency - Self Resonant	9MHz	Detailed Description	56µH Unshielded Inductor 191mA 5.5 Ohm Max 1812 (4532 Metric)
DC Resistance (DCR)	5.5 Ohm Max	Current Rating	191mA
Current - Saturation	-
