H11B1SR2VM

AMI Semiconductor / ON Semiconductor

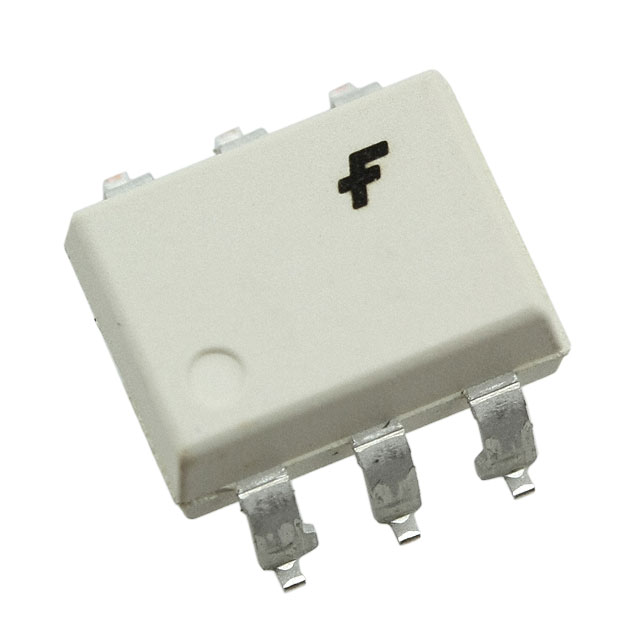

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H11B1SR2VM
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	OPTOISO 4.17KV DARL W/BASE 6SMD
Datasheets:	H11B1SR2VM.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	282979 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 282979 pcs

Reference Price (In US Dollars)

1000 pcs: $0.117

2000 pcs: $0.109

5000 pcs: $0.105

10000 pcs: $0.104

25000 pcs: $0.101

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.117

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H11B1SR2VM

Part Number	H11B1SR2VM	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	OPTOISO 4.17KV DARL W/BASE 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	282979 pcs	Data sheet	H11B1SR2VM.pdf
Voltage - Output (Max)	30V	Voltage - Isolation	4170Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	1V
Turn On / Turn Off Time (Typ)	25µs, 18µs	Supplier Device Package	6-SMD
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tape & Reel (TR)	Package / Case	6-SMD, Gull Wing
Output Type	Darlington with Base	Other Names	H11B1SR2VMTR
Operating Temperature	-40°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Darlington with Base Output 4170Vrms 1 Channel 6-SMD
Current Transfer Ratio (Min)	500% @ 1mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	150mA	Current - DC Forward (If) (Max)	80mA
