BAT54XV2T1

AMI Semiconductor / ON Semiconductor

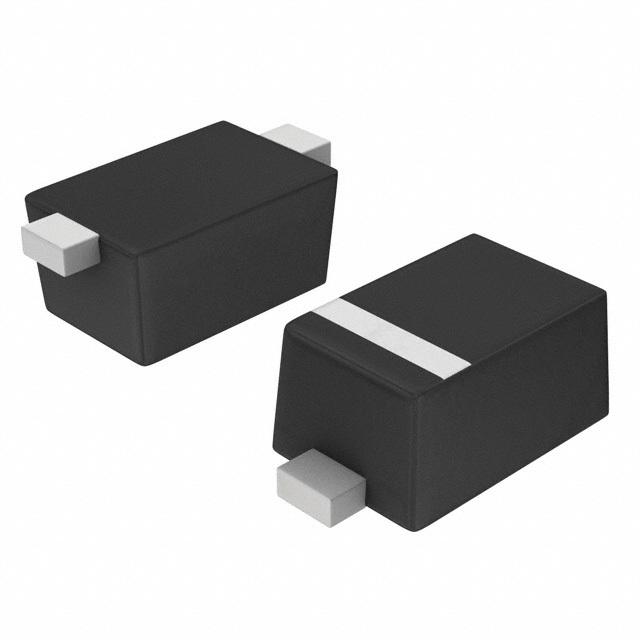

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BAT54XV2T1
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	DIODE SCHOTTKY 30V 200MA SOD523
Datasheets:	BAT54XV2T1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	2776 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2776 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BAT54XV2T1

Part Number	BAT54XV2T1	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	DIODE SCHOTTKY 30V 200MA SOD523	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	2776 pcs	Data sheet	BAT54XV2T1.pdf
Voltage - Forward (Vf) (Max) @ If	800mV @ 100mA	Voltage - DC Reverse (Vr) (Max)	30V
Supplier Device Package	SOD-523	Speed	Small Signal =< 200mA (Io), Any Speed
Series	-	Reverse Recovery Time (trr)	5ns
Packaging	Tape & Reel (TR)	Package / Case	SC-79, SOD-523
Other Names	BAT54XV2T1OS BAT54XV2T1OS-ND BAT54XV2T1OSTR	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 30V 200mA (DC) Surface Mount SOD-523	Current - Reverse Leakage @ Vr	2µA @ 25V
Current - Average Rectified (Io)	200mA (DC)	Capacitance @ Vr, F	10pF @ 1V, 1MHz
Base Part Number	BAT54X
